Inner Wing Guards

Post by pbar » Tue Nov 24, 2020 6:50 pm

Anyone know how these fit, or have them fitted? They were standard on some models. I assume the rubber edge butts up to the profile of the wing, but can't understand what secures it or what it fixes to.


User avatar
Andrew 2.8i
Donator
Donator
Posts: 13572
Joined: Sat Jan 25, 2014 7:38 pm
Car(s): '83 2.8 Injection (sunny days only)
'04 Toyota MR2 (owned from new)
Location: Ceredigion
Contact:

Re: Inner Wing Guards

Post by Andrew 2.8i » Tue Nov 24, 2020 8:30 pm

You are correct about the rubber edge fitting to the inside of the wing.

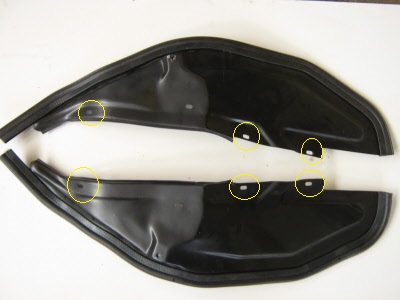

On the wing edge of the guard there is a hole, although on the repro items in your photo it looks like there is just a dimple that will have to be drilled out. That hole should mate with the little tab on the inside of the wing at the wheel arch.
That's the only fastening point on the outer edge of the guard. The inner edge should line up with a lip on the inner wing, and that is secured by three self tappers through the holes in the guard.

I hope that helps, but it's easier to explain with photos.

Andrew.

User avatar
stevemarl
Donator
Donator
Posts: 4555
Joined: Wed Jul 11, 2012 6:31 pm
Car(s): Capri 1.6 laser

Re: Inner Wing Guards

Post by stevemarl » Tue Nov 24, 2020 8:48 pm

Andrew,
are these tabs on the edge to do with that, I`ve often wondered?

User avatar
Andrew 2.8i
Donator
Donator
Posts: 13572
Joined: Sat Jan 25, 2014 7:38 pm
Car(s): '83 2.8 Injection (sunny days only)
'04 Toyota MR2 (owned from new)
Location: Ceredigion
Contact:

Re: Inner Wing Guards

Post by Andrew 2.8i » Tue Nov 24, 2020 8:50 pm

Not the best photos, granted, but they are the best I can do at the moment!

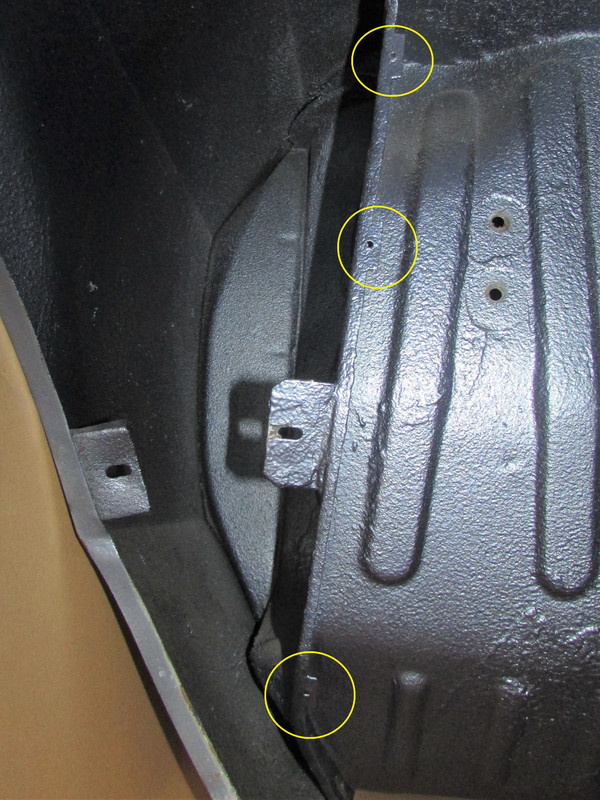

The two main fixing points:


The two uppermost holes of three in the lip in the inner wing (circled red):


Andrew.

User avatar
Andrew 2.8i
Donator
Donator
Posts: 13572
Joined: Sat Jan 25, 2014 7:38 pm
Car(s): '83 2.8 Injection (sunny days only)
'04 Toyota MR2 (owned from new)
Location: Ceredigion
Contact:

Re: Inner Wing Guards

Post by Andrew 2.8i » Tue Nov 24, 2020 8:52 pm

stevemarl wrote:
Tue Nov 24, 2020 8:48 pm
Andrew,
are these tabs on the edge to do with that, I`ve often wondered?
Hi Steve,
Yes, they are the upper two of the three inner fixings. There should be a third tab down much lower. They should align with the holes in the guards clearly shown in Paul's photo.


Andrew.

User avatar
stevemarl
Donator
Donator
Posts: 4555
Joined: Wed Jul 11, 2012 6:31 pm
Car(s): Capri 1.6 laser

Re: Inner Wing Guards

Post by stevemarl » Tue Nov 24, 2020 8:59 pm

Cheers Andrew,
I see, - I thought they went the other way up: it all makes sense now!
The refurb seems to be coming along nicely.

User avatar
Andrew 2.8i
Donator
Donator
Posts: 13572
Joined: Sat Jan 25, 2014 7:38 pm
Car(s): '83 2.8 Injection (sunny days only)
'04 Toyota MR2 (owned from new)
Location: Ceredigion
Contact:

Re: Inner Wing Guards

Post by Andrew 2.8i » Tue Nov 24, 2020 9:02 pm

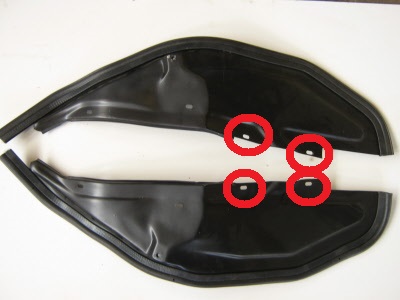

And these will align with the main fixing tabs:


As I wrote previously, it looks as though the holes here will need to be drilled out.

Andrew.

User avatar
Andrew 2.8i
Donator
Donator
Posts: 13572
Joined: Sat Jan 25, 2014 7:38 pm
Car(s): '83 2.8 Injection (sunny days only)
'04 Toyota MR2 (owned from new)
Location: Ceredigion
Contact:

Re: Inner Wing Guards

Post by Andrew 2.8i » Tue Nov 24, 2020 9:04 pm

stevemarl wrote:
Tue Nov 24, 2020 8:59 pm
Cheers Andrew,
I see, - I thought they went the other way up: it all makes sense now!
The bottom of the guards are on the left in the photo.

Andrew.

User avatar
pbar
Posts: 6197
Joined: Thu Jun 07, 2012 6:29 pm
Car(s): Capri 2.0 Laser, frequent driver.
Location: North-West

Re: Inner Wing Guards

Post by pbar » Tue Nov 24, 2020 9:26 pm

Andrew 2.8i wrote:
Tue Nov 24, 2020 8:30 pm
I hope that helps

Yes, your info and pics are a superb help, thank you :)

Bug
Posts: 3408
Joined: Sun Jan 04, 2009 3:52 pm
Car(s): Some

Re: Inner Wing Guards

Post by Bug » Wed Nov 25, 2020 8:54 am

I had a couple of sets where the rubber didn't fill the gap properly and crud still got behind them.

Solved it by replacing the rubber with lengths of door seal, which is a bit fatter, but squashes up enough to fit.

Whatever you do, don't expect these to be 100% effective, still fill the gap behind with Waxoyl or something similar.

And it's also an idea to use hex head screws if you can. Positioned where they are, the screws will corrode and a hex head is much better to undo using a socket than a screw head that will easily round off as soon as the screwdriver gets within 6 inches of it!

User avatar
pbar
Posts: 6197
Joined: Thu Jun 07, 2012 6:29 pm
Car(s): Capri 2.0 Laser, frequent driver.
Location: North-West

Re: Inner Wing Guards

Post by pbar » Wed Nov 25, 2020 11:17 am

Thanks very much Martin, superb advice. I am quite sure that these would not fit perfectly on my car and that I'd have to alter things to some degree, it's one of the things I am worried about so your mention of using a door seal is excellent, never considered that.
Last edited by pbar on Wed Nov 25, 2020 11:32 am, edited 1 time in total.

User avatar
pbar
Posts: 6197
Joined: Thu Jun 07, 2012 6:29 pm
Car(s): Capri 2.0 Laser, frequent driver.
Location: North-West

Re: Inner Wing Guards

Post by pbar » Wed Nov 25, 2020 11:20 am

Andrew 2.8i wrote:
Tue Nov 24, 2020 8:50 pm
Not the best photos, granted, but they are the best I can do at the moment!
They are perfectly fine, thanks again, the guards have obviously worked well, your car is immaculate under there, perfect, like brand new (no doubt also due to the care and time you give to it), looking at cars like your and Nicks, the gulf between them and the vast majority of the other Capri's is very apparent, it's immense, soul destroying in a way. Good luck with your car and whatever jobs you are doing at the moment.

User avatar
Andrew 2.8i
Donator
Donator
Posts: 13572
Joined: Sat Jan 25, 2014 7:38 pm
Car(s): '83 2.8 Injection (sunny days only)
'04 Toyota MR2 (owned from new)
Location: Ceredigion
Contact:

Re: Inner Wing Guards

Post by Andrew 2.8i » Thu Nov 26, 2020 7:04 pm

pbar wrote:
Wed Nov 25, 2020 11:20 am
your car is immaculate under there, perfect, like brand new
Thanks for the compliment, I wish that were true !
I'm glad you found the photos useful.

Andrew.

User avatar
pbar
Posts: 6197
Joined: Thu Jun 07, 2012 6:29 pm
Car(s): Capri 2.0 Laser, frequent driver.
Location: North-West

Re: Inner Wing Guards

Post by pbar » Thu Nov 26, 2020 7:41 pm

Andrew 2.8i wrote:
Thu Nov 26, 2020 7:04 pm
I'm glad you found the photos useful.

Very much so. If you don't mind, and if you can, please would you be able to take a picture of the lowermost fixing/bracket.

User avatar
Andrew 2.8i
Donator
Donator
Posts: 13572
Joined: Sat Jan 25, 2014 7:38 pm
Car(s): '83 2.8 Injection (sunny days only)
'04 Toyota MR2 (owned from new)
Location: Ceredigion
Contact:

Re: Inner Wing Guards

Post by Andrew 2.8i » Thu Nov 26, 2020 7:55 pm

pbar wrote:
Thu Nov 26, 2020 7:41 pm
please would you be able to take a picture of the lowermost fixing/bracket.
Of course, no problem at all. It'll have to be tomorrow morning though, if that's OK?

Andrew.

User avatar
pbar
Posts: 6197
Joined: Thu Jun 07, 2012 6:29 pm
Car(s): Capri 2.0 Laser, frequent driver.
Location: North-West

Re: Inner Wing Guards

Post by pbar » Thu Nov 26, 2020 10:13 pm

No rush at all, that would be brilliant, you're a good un, thanks :)

User avatar
Andrew 2.8i
Donator
Donator
Posts: 13572
Joined: Sat Jan 25, 2014 7:38 pm
Car(s): '83 2.8 Injection (sunny days only)
'04 Toyota MR2 (owned from new)
Location: Ceredigion
Contact:

Re: Inner Wing Guards

Post by Andrew 2.8i » Fri Nov 27, 2020 9:38 am

Here you go, the three small fixing points all in one photo!
I hope this photo shows you everything you need to know.



Andrew.

Bug
Posts: 3408
Joined: Sun Jan 04, 2009 3:52 pm
Car(s): Some

Re: Inner Wing Guards

Post by Bug » Fri Nov 27, 2020 9:53 am

pbar wrote:
Thu Nov 26, 2020 7:41 pm
Andrew 2.8i wrote:
Thu Nov 26, 2020 7:04 pm
I'm glad you found the photos useful.

Very much so. If you don't mind, and if you can, please would you be able to take a picture of the lowermost fixing/bracket.
Jeez! He's still at it!
Getting other people rolling around under their Capris for him. :xd:

User avatar
Andrew 2.8i
Donator
Donator
Posts: 13572
Joined: Sat Jan 25, 2014 7:38 pm
Car(s): '83 2.8 Injection (sunny days only)
'04 Toyota MR2 (owned from new)
Location: Ceredigion
Contact:

Re: Inner Wing Guards

Post by Andrew 2.8i » Fri Nov 27, 2020 10:07 am

Bug wrote:
Fri Nov 27, 2020 9:53 am
Getting other people rolling around under their Capris for him. :xd:
In the freezing cold too ! :D

Andrew.

User avatar
pbar
Posts: 6197
Joined: Thu Jun 07, 2012 6:29 pm
Car(s): Capri 2.0 Laser, frequent driver.
Location: North-West

Re: Inner Wing Guards

Post by pbar » Fri Nov 27, 2020 11:00 am

Andrew 2.8i wrote:
Fri Nov 27, 2020 9:38 am
I hope this photo shows you everything you need to know.

That is super, thanks very much Andrew, I appreciate it.
