Rear ARB bush orientation

Post by LaserSean91 » Mon Sep 21, 2020 6:46 am

I have taken off my rear anti roll bar to paint and fit polybushes and there is one side of the bush that protrudes out of the 'eye' on the end of the threaded bar more than the other... Can someone confirm which way the bush goes? Thanks in advance :)

User avatar
stevemarl
Donator
Donator
Posts: 4453
Joined: Wed Jul 11, 2012 6:31 pm
Car(s): Capri 1.6 laser

Re: Rear ARB bush orientation

Post by stevemarl » Mon Sep 21, 2020 10:24 pm

Is this any help?

LaserSean91
Donator
Donator
Posts: 28
Joined: Thu Jul 23, 2015 8:19 pm
Car(s): Golf GTI (Daily Driver)
Ford Capri 1.6 Laser (Restoration Project)
Location: Preston, Lancashire

Re: Rear ARB bush orientation

Post by LaserSean91 » Tue Sep 22, 2020 7:20 am

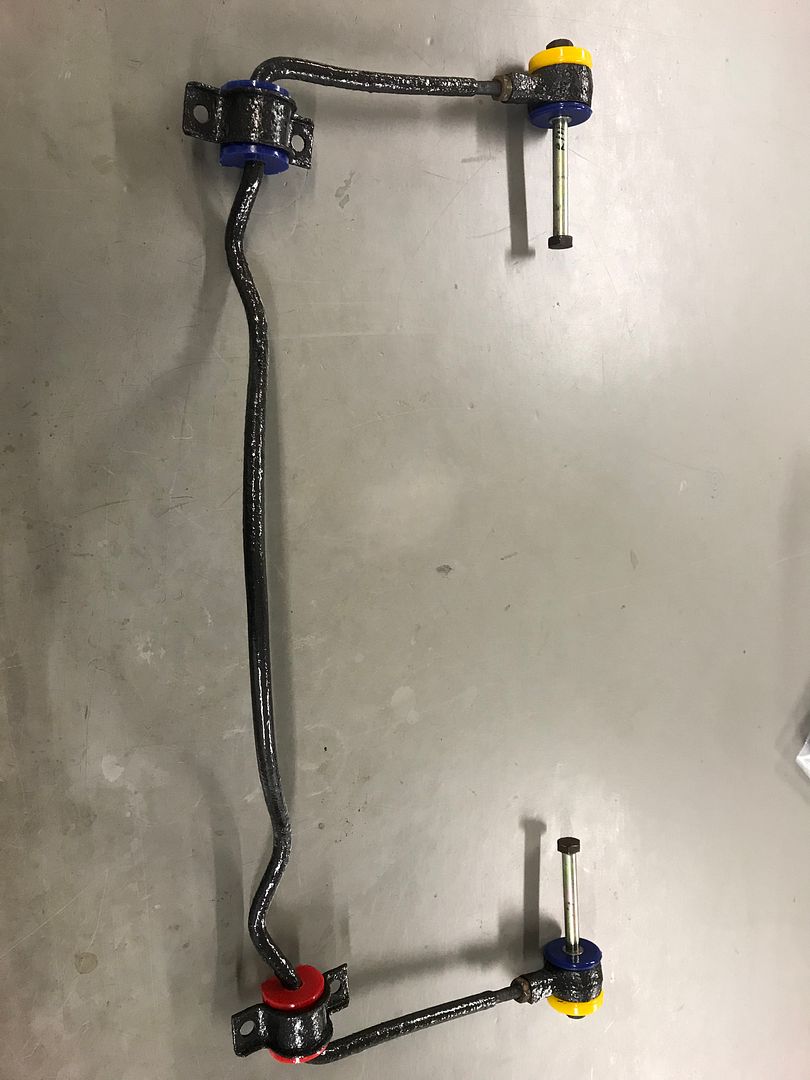

Thanks for the reply, your picture seems to have the standard bushes. My bushes I have used are different and seems protrudes one side of the eye more than the other. I can't seem to find any info on which way around to fit them.

Bug
Posts: 3344
Joined: Sun Jan 04, 2009 3:52 pm
Car(s): Some

Re: Rear ARB bush orientation

Post by Bug » Tue Sep 22, 2020 8:07 am

LaserSean91 wrote:
Tue Sep 22, 2020 7:20 am

Thanks for the reply, your picture seems to have the standard bushes. My bushes I have used are different and seems protrudes one side of the eye more than the other. I can't seem to find any info on which way around to fit them.
That's odd that they are different colours for each half? And even the two axle ones are different colours.
Was this a conscious decision on your part?
Just wondering as I know one or two manufacturers denote different strength/hardness with different colours?
Last edited by Bug on Tue Sep 22, 2020 8:09 am, edited 1 time in total.

LaserSean91
Donator
Donator
Posts: 28
Joined: Thu Jul 23, 2015 8:19 pm
Car(s): Golf GTI (Daily Driver)
Ford Capri 1.6 Laser (Restoration Project)
Location: Preston, Lancashire

Re: Rear ARB bush orientation

Post by LaserSean91 » Tue Sep 22, 2020 8:08 am

It was a 'budget set' made up with odd colors. They are all the same hardness. Saved me £20 :lol:
Last edited by LaserSean91 on Tue Sep 22, 2020 8:10 am, edited 1 time in total.

Bug
Posts: 3344
Joined: Sun Jan 04, 2009 3:52 pm
Car(s): Some

Re: Rear ARB bush orientation

Post by Bug » Tue Sep 22, 2020 8:09 am

LaserSean91 wrote:
Tue Sep 22, 2020 8:08 am
It was a 'budget set' made up with odd colors. Saved me £20 :lol:
Ah ok, as long as they are all the same spec.

LaserSean91
Donator
Donator
Posts: 28
Joined: Thu Jul 23, 2015 8:19 pm
Car(s): Golf GTI (Daily Driver)
Ford Capri 1.6 Laser (Restoration Project)
Location: Preston, Lancashire

Re: Rear ARB bush orientation

Post by LaserSean91 » Tue Sep 22, 2020 8:16 am

Yeah all the same spec, Just a bit unsure which way around they go.

User avatar
stevemarl
Donator
Donator
Posts: 4453
Joined: Wed Jul 11, 2012 6:31 pm
Car(s): Capri 1.6 laser

Re: Rear ARB bush orientation

Post by stevemarl » Tue Sep 22, 2020 9:43 am

I would say just to test fit both ways and see which fits most snugly, (I`d guess long side outer). You`ll probably find one way obviously fits better?

Edit: I guessed right:

User avatar
Noel
Donator
Donator
Posts: 440
Joined: Thu May 19, 2011 7:57 pm
Car(s): Capri 2.8i
Range Rover
M140i
Location: Twickenham

Re: Rear ARB bush orientation

Post by Noel » Wed Sep 23, 2020 8:43 am

Yeah the thicker end of the bush that sticks out more goes against the chassis, i.e. pointing outwards as it were.

Should be 4 washers too that go one either side of the bush to spread the load across the insert and the poly material.

LaserSean91
Donator
Donator
Posts: 28
Joined: Thu Jul 23, 2015 8:19 pm
Car(s): Golf GTI (Daily Driver)
Ford Capri 1.6 Laser (Restoration Project)
Location: Preston, Lancashire

Re: Rear ARB bush orientation

Post by LaserSean91 » Thu Sep 24, 2020 7:44 pm

Cheers gents, thanks for clearing that up for me. Greatly appreciated. Hopefully it will be back on soon once I have sorted the spring hanger area.
