Indicator/horn stork no longer working

Please restrict your questions and replies to Capri related technical issues!
Post Reply
Owent2005
Posts: 74
Joined: Fri Nov 29, 2019 10:14 pm
Car(s): Ford Capri 1983 Mk3 1.6LS

Indicator/horn stork no longer working

Post by Owent2005 » Tue May 12, 2020 2:52 pm

Afternoon, hope everyone is well

My indicators and horn have stopped working (along with the rev counter). The horn wire has continuity from the stork to where it connects to the horn but no voltage when operated. I’m guessing that power isn’t getting to the stork (if that’s a thing)? I’m in the process of tracing all the wiring but it’s a bit of a mess.

Does anyone have any pointers or come across this before?

TIA,

Owen

User avatar
D366Y
Donator
Donator
Posts: 1829
Joined: Mon Sep 03, 2012 2:26 pm
Car(s): 1986 Laser 1.6, daily runaround project
1981 GL Auto 2.0, Barn-Find-Resto, now also a runaround project
1980 3.0S, crash damage resto
1993 Fiesta 1.1

Currently full up and no more space but I still want a 2.8...
Location: South Bucks

Re: Indicator/horn stork no longer working

Post by D366Y » Tue May 12, 2020 4:15 pm

I think this is a relatively common issue caused by the stalk just being broken... I had a similar issue before and replaced the stalk and it solved the problem but I knew before that the wiring worked before.

I think it has something to do with the metal casing around the bottom of the stalk cracking which causes the issue?

Cheers
Danny
A wise man once said... "you can never have too many capris - buy another" :beer:

Owent2005
Posts: 74
Joined: Fri Nov 29, 2019 10:14 pm
Car(s): Ford Capri 1983 Mk3 1.6LS

Re: Indicator/horn stork no longer working

Post by Owent2005 » Thu May 14, 2020 8:16 am

Cheers Danny,

Ive managed to get the horn working after basically stripping cleaning and rebuilding all the parts. The main beam also works from the stalk so I'm suspecting a nipped earth or dodgy connection somewhere. I start on the indicators today so fingers crossed.

Im not sure if its connected, but my rev counter, fuel gauge and eng temp aren't working, I'm wondering if theres a common earth that might be dodgy? I have the Haynes manual but the schematics aren't great!

Owen

Bug
Posts: 3342
Joined: Sun Jan 04, 2009 3:52 pm
Car(s): Some

Re: Indicator/horn stork no longer working

Post by Bug » Thu May 14, 2020 9:01 am

Owent2005 wrote:
Thu May 14, 2020 8:16 am
Cheers Danny,

Ive managed to get the horn working after basically stripping cleaning and rebuilding all the parts. The main beam also works from the stalk so I'm suspecting a nipped earth or dodgy connection somewhere. I start on the indicators today so fingers crossed.

Im not sure if its connected, but my rev counter, fuel gauge and eng temp aren't working, I'm wondering if theres a common earth that might be dodgy? I have the Haynes manual but the schematics aren't great!

Owen
Have you been up behind the instrument cluster?
That sounds as though it could be something as simple as the multiplug being slightly disturbed?

Owent2005
Posts: 74
Joined: Fri Nov 29, 2019 10:14 pm
Car(s): Ford Capri 1983 Mk3 1.6LS

Re: Indicator/horn stork no longer working

Post by Owent2005 » Thu May 14, 2020 5:15 pm

Is the multi plug the Flasher Unit? And is this the flasher unit in the picture? I traced the wires to it and was going to ask how I can check that it’s serviceable.

Thanks

Owen
Attachments

User avatar
Andrew 2.8i
Donator
Donator
Posts: 13409
Joined: Sat Jan 25, 2014 7:38 pm
Car(s): '83 2.8 Injection (sunny days only)
'04 Toyota MR2 (owned from new)
Location: Ceredigion
Contact:

Re: Indicator/horn stork no longer working

Post by Andrew 2.8i » Fri May 15, 2020 7:15 am

Owent2005 wrote:
Thu May 14, 2020 5:15 pm
Is the multi plug the Flasher Unit?
Hi Owen,
The multiplug that Bug is referring to is the one that plugs into the back of the instrument binnacle.

As I'm sure you know, the flasher unit is simply a 3 pin relay and a replacement is freely available.
Alternatively, there is this modern replacement:
https://www.ebay.co.uk/itm/3-Pin-Upgrad ... Sw1EJc7FY3
You should be able to test your existing unit to see if it works properly.

Andrew.

User avatar
stevemarl
Donator
Donator
Posts: 4453
Joined: Wed Jul 11, 2012 6:31 pm
Car(s): Capri 1.6 laser

Re: Indicator/horn stork no longer working

Post by stevemarl » Fri May 15, 2020 11:43 am

Andrew 2.8i wrote:
Fri May 15, 2020 7:15 am
he flasher unit is simply a 3 pin relay and a replacement is freely available.

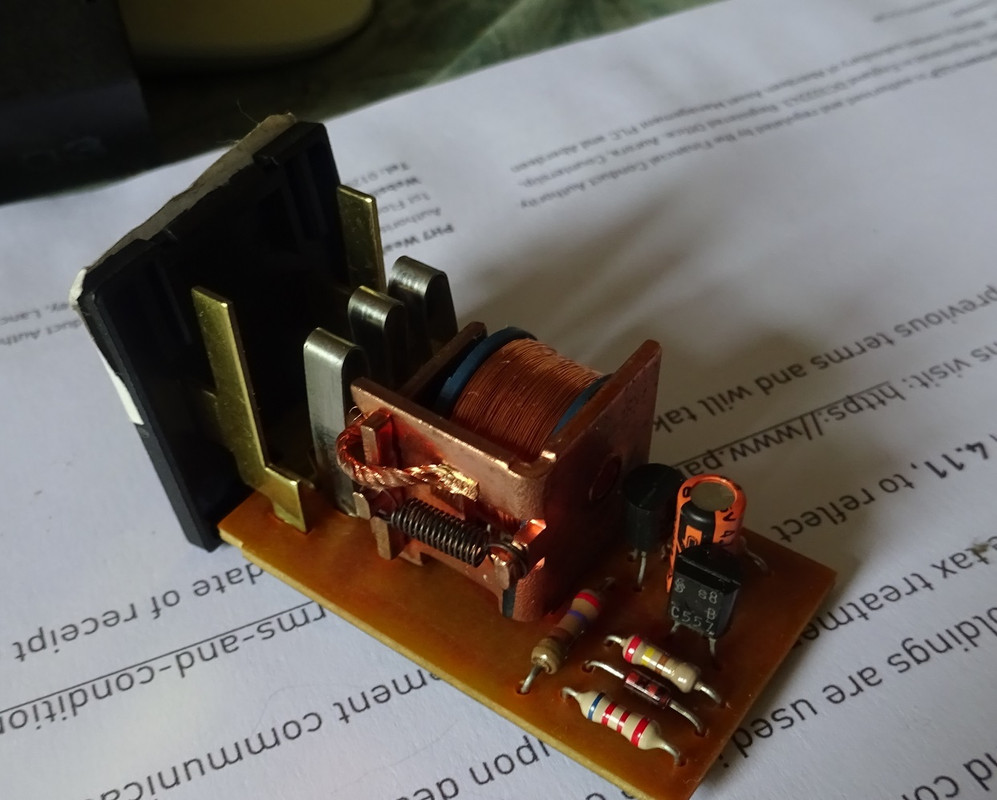

Just for absolute clarity, the flasher is not a simple relay as such, it does contain the circuit which causes flashing (via an onboard relay). Just in case the OP tried to test by substituting a conventional SPST relay?

If anyone`s interested?

Owent2005
Posts: 74
Joined: Fri Nov 29, 2019 10:14 pm
Car(s): Ford Capri 1983 Mk3 1.6LS

Re: Indicator/horn stork no longer working

Post by Owent2005 » Fri May 15, 2020 11:55 am

Thanks guys,

Ive tested the relay (which looks like the one in your picture steve) and when i put power to it, the relay, I think, is staying on as the test light stays on, (Im not sure if its going really quickly due to there being no resistance to the circuit) and the relay makes a constant tone.

With power connected should the relay be clicking on and off?

Thanks,

Owen

User avatar
stevemarl
Donator
Donator
Posts: 4453
Joined: Wed Jul 11, 2012 6:31 pm
Car(s): Capri 1.6 laser

Re: Indicator/horn stork no longer working

Post by stevemarl » Fri May 15, 2020 12:03 pm

Owen,
I can`t remember, but AFAIK although electronic it still flashes quicker if a bulb blows (I think deliberate design) which means if you`re testing it without a load it may just stay on, or just oscillate - the buzzing from the relay? I can botch together a circuit later this afternoon to see how it works with/without load.

Owent2005
Posts: 74
Joined: Fri Nov 29, 2019 10:14 pm
Car(s): Ford Capri 1983 Mk3 1.6LS

Re: Indicator/horn stork no longer working

Post by Owent2005 » Fri May 15, 2020 12:06 pm

stevemarl wrote:
Fri May 15, 2020 12:03 pm
Owen,
I can`t remember, but AFAIK although electronic it still flashes quicker if a bulb blows (I think deliberate design) which means if you`re testing it without a load it may just stay on, or just oscillate - the buzzing from the relay? I can botch together a circuit later this afternoon to see how it works with/without load.
That would be great if you could Steve thanks

Bug
Posts: 3342
Joined: Sun Jan 04, 2009 3:52 pm
Car(s): Some

Re: Indicator/horn stork no longer working

Post by Bug » Fri May 15, 2020 1:16 pm

Andrew 2.8i wrote:
Fri May 15, 2020 7:15 am
Owent2005 wrote:
Thu May 14, 2020 5:15 pm
Is the multi plug the Flasher Unit?
Hi Owen,
The multiplug that Bug is referring to is the one that plugs into the back of the instrument binnacle.

As I'm sure you know, the flasher unit is simply a 3 pin relay and a replacement is freely available.
Alternatively, there is this modern replacement:
https://www.ebay.co.uk/itm/3-Pin-Upgrad ... Sw1EJc7FY3
You should be able to test your existing unit to see if it works properly.

Andrew.
Sorry, yes. To clarify, I was addressing your issue with the possible common earth fault on your gauges.

User avatar
stevemarl
Donator
Donator
Posts: 4453
Joined: Wed Jul 11, 2012 6:31 pm
Car(s): Capri 1.6 laser

Re: Indicator/horn stork no longer working

Post by stevemarl » Fri May 15, 2020 5:52 pm

Owent2005 wrote:
Fri May 15, 2020 11:55 am
(Im not sure if its going really quickly due to there being no resistance to the circuit) and the relay makes a constant tone.
Turns out you`re very nearly spot on, except no current rather than no resistance. I`ve run one this afto and with a 21w bulb it flashes fairly rapidly: with the correct load (2x 21w) it flashes normally. witha a 5w bulb it flashes so fast the relay is just vibrating (buzzing!) so fast the light appears constant. There`s a very low value resistor in series and the voltage drop across this triggers the switching, presumably to retain the change in speed to warn you of bulb failure even though it`s now an electronic device not bi-metallic strip. Circuit to test is:

Owent2005
Posts: 74
Joined: Fri Nov 29, 2019 10:14 pm
Car(s): Ford Capri 1983 Mk3 1.6LS

Re: Indicator/horn stork no longer working

Post by Owent2005 » Fri May 15, 2020 7:08 pm

That’s great Steve thanks. I was thinking the relay was fine and your test confirms this.
As you’ve seen from my other posts I’ve a few gremlins to get through. Could the issue of the indicators/hazards not working have anything to do with the lack of gauges working on the instrument panel as according to Haynes one the wires goes to the indicator flasher. Or could it be to do with the system not charging properly?

Thanks,

Owen

User avatar
stevemarl
Donator
Donator
Posts: 4453
Joined: Wed Jul 11, 2012 6:31 pm
Car(s): Capri 1.6 laser

Re: Indicator/horn stork no longer working

Post by stevemarl » Fri May 15, 2020 7:32 pm

I think it`s more likely to be the multiplug on the instrument cluster as others have suggested, as the whole of the cluster is powered and earthed through this one plug. Probably just needs to be unplugged, spray of switch cleaner, or wd40, and pushhed in & out a couple of times. (the wire you`re talking about is probably just going IN to the green turn warning light?)

Owent2005
Posts: 74
Joined: Fri Nov 29, 2019 10:14 pm
Car(s): Ford Capri 1983 Mk3 1.6LS

Re: Indicator/horn stork no longer working

Post by Owent2005 » Fri May 15, 2020 8:38 pm

Ok thanks, the instrument panel is hopefully coming out tomorrow so I’ll let you know how I get on.
I guess I’ll keep tracing wires to get to the bottom of the hazards/indicators!

Owent2005
Posts: 74
Joined: Fri Nov 29, 2019 10:14 pm
Car(s): Ford Capri 1983 Mk3 1.6LS

Re: Indicator/horn stork no longer working

Post by Owent2005 » Sun Jun 07, 2020 8:42 am

Good morning,
Ive almost finished with the electrics (for now) so am trying to cap all of my Q&A's. What i found when I delved deeper into the horn and indicator issue is that I wasn't getting 14v when the engine was running due to some dodgy alternator connections. I found this out after taking the car for a longish drive the horn suddenly started working, i.e it had its 14v which it didn't when sitting at idle just after being started. Once connected properly (there was no alternator to PCB connection) both indicators/hazards and horn have been fine. Thanks for the pointers.
Owen

DBSV8
Posts: 20
Joined: Wed Apr 27, 2016 10:53 am
Car(s): Ford capri mk1 cologne 3000 work in progress engine out
Ford Capri mk2 3000 daily driver but need a few parts to finish off

Re: Indicator/horn stork no longer working

Post by DBSV8 » Thu Sep 24, 2020 7:06 am

great thread , im about to have a look at mine my front and read indicators light up but don't flash , horn doesn't work and I've now lost full beam , only dipped beam .

guessing by the thread the flasher relay is the cause , power must be getting to them for them to illuminate

Bug
Posts: 3342
Joined: Sun Jan 04, 2009 3:52 pm
Car(s): Some

Re: Indicator/horn stork no longer working

Post by Bug » Thu Sep 24, 2020 9:28 am

As there are several relays under the dash, for clarity, the one you need is the one with 'blinkgeber' written on it.
I guess it means 'goes blink' or 'gives a blink' in German? :D
