How do I check 2.8 is factory original

Please restrict your questions and replies to Capri related technical issues!
Oilburner
Posts: 7
Joined: Tue Feb 25, 2020 4:53 pm
Car(s): Looking to buy a 2.8i

How do I check 2.8 is factory original

Post by Oilburner » Wed Feb 26, 2020 8:06 am

Hi all
New to the group
I am looking for a 2.8i but concerned that I will buy a modified “other” spec with a changed engine etc. Not saying there is anything wrong with the other models but if I pay for a 2.8 I want a 2.8 as it came out of the factory

How do I check I am getting a genuine 2.8i?

I have spent hours on google but struggling to find a definitive answer on the model differences (especially shell).
Also are the commission numbers different?

Any help much appreciated
Thanks

Caprigear
Donator
Donator
Posts: 2336
Joined: Thu Jan 27, 2011 9:14 pm

Re: How do I check 2.8 is factory original

Post by Caprigear » Wed Feb 26, 2020 9:25 am

The VIN plate will give you the information you require but you'll need to understand what the letters and numbers are telling you. Also, if you get close up pictures of particularly the engine bay and interior then post them up you will get advice on the particular car.

User avatar
pbar
Posts: 5971
Joined: Thu Jun 07, 2012 6:29 pm
Car(s): Capri 2.0 Laser, frequent driver.
Location: North-West

Re: How do I check 2.8 is factory original

Post by pbar » Wed Feb 26, 2020 9:40 am

Oilburner wrote:
Wed Feb 26, 2020 8:06 am
I am looking for a 2.8i but concerned that I will buy a modified “other” spec with a changed engine etc.
I think that's unlikely, certainly don't really hear of it happening.

But I'm sure someone on here will provide details of the obvious shell structure differences so you can double check them on the car.

User avatar
pbar
Posts: 5971
Joined: Thu Jun 07, 2012 6:29 pm
Car(s): Capri 2.0 Laser, frequent driver.
Location: North-West

Re: How do I check 2.8 is factory original

Post by pbar » Wed Feb 26, 2020 9:43 am

Here is some info which might help you out -

Yes the 3.0/2.8 shells have 7 extra plates each side around the front suspension, obvious ones under the bonnet - strut tops and corner brackets at back corners of the engine bay.

Under the wing you have a large plate bracing the strut tower to the inner wing. Then you have 4 more, the best one to tell if it is a V6 shell is the large one that ties in the roll bar mounts and the tower as this would be a pig to swap to a 4-cyl. as it goes behind the tower. This along with #4 strengthens the chassis rail along it's whole length.

Oilburner
Posts: 7
Joined: Tue Feb 25, 2020 4:53 pm
Car(s): Looking to buy a 2.8i

Re: How do I check 2.8 is factory original

Post by Oilburner » Wed Feb 26, 2020 10:10 am

The reinforcement tip is excellent - thanks
How do I decipher the vin

Thanks
PS looking at the photo of the 2.8 listed on for sale I can’t see any plate on the turret tops - am I missing something?

Oilburner
Posts: 7
Joined: Tue Feb 25, 2020 4:53 pm
Car(s): Looking to buy a 2.8i

Re: How do I check 2.8 is factory original

Post by Oilburner » Wed Feb 26, 2020 10:11 am

Does anyone have photos of these extra plates please

Oilburner
Posts: 7
Joined: Tue Feb 25, 2020 4:53 pm
Car(s): Looking to buy a 2.8i

Re: How do I check 2.8 is factory original

Post by Oilburner » Wed Feb 26, 2020 10:17 am

Just realised the photo is not on this site (same car) so here it is
https://www.carandclassic.co.uk/car/C1162572


User avatar
andyd
Posts: 6835
Joined: Wed Aug 20, 2014 10:43 am
Car(s): 1984 2.8 Injection
Location: Devon

Re: How do I check 2.8 is factory original

Post by andyd » Wed Feb 26, 2020 10:23 am

Oilburner wrote:
Wed Feb 26, 2020 10:17 am
Just realised the photo is not on this site (same car) so here it is
https://www.carandclassic.co.uk/car/C1162572

viewtopic.php?f=15&t=53351

User avatar
pbar
Posts: 5971
Joined: Thu Jun 07, 2012 6:29 pm
Car(s): Capri 2.0 Laser, frequent driver.
Location: North-West

Re: How do I check 2.8 is factory original

Post by pbar » Wed Feb 26, 2020 11:33 am

You can see them on these cars. Not sure if all 2.8's would have had them, as you say they are not on the pic of the car you are looking at, may depend on year? Or even if these are repair plates. Someone else will advise.



User avatar
Peter-S
Donator
Donator
Posts: 6828
Joined: Mon Jul 28, 2008 7:57 am
Car(s): 1985 Capri 2.0
1983 Capri 2.8i
Location: Kent
Contact:

Re: How do I check 2.8 is factory original

Post by Peter-S » Wed Feb 26, 2020 11:42 am

Oilburner wrote:
Wed Feb 26, 2020 10:11 am
Does anyone have photos of these extra plates please

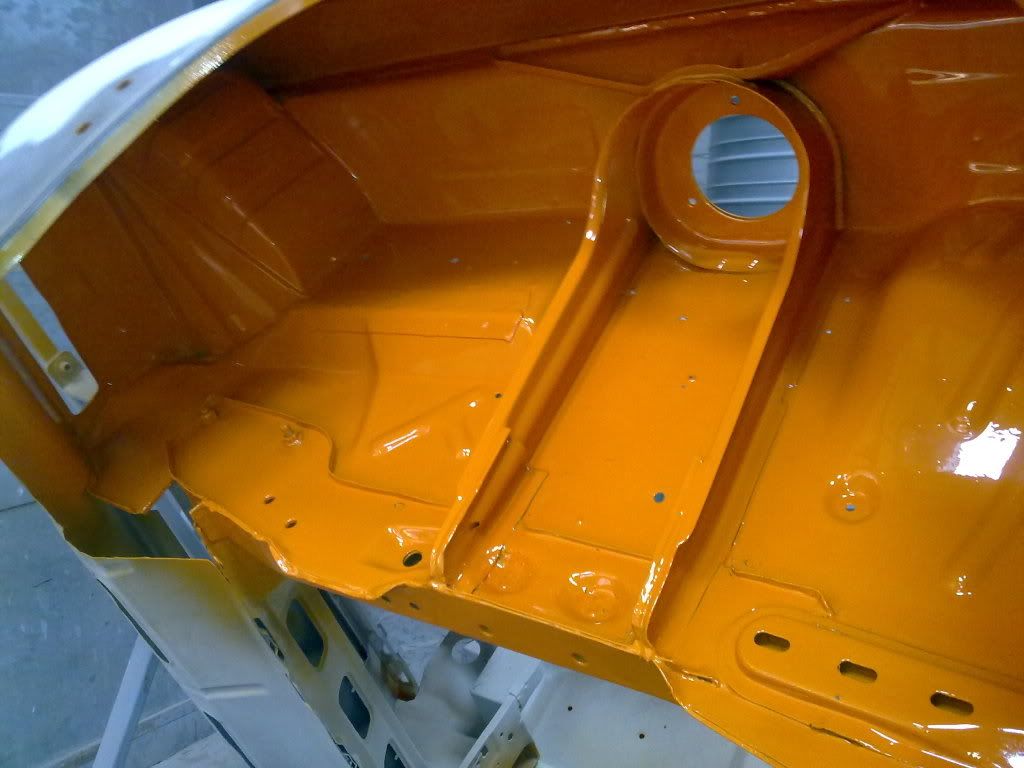

These are the plates under the wing.
The small long one half way up the wing should not be there on the nearside for a 2.8 as it is a battery tray reinforcement. It would therefore be on the other side of a genuine 2.8 shell. This shot is a 3.0 shell which has mostly the same reinforcement plates

ImageBanner by Peter Smith, on Flickr

User avatar
D366Y
Donator
Donator
Posts: 1559
Joined: Mon Sep 03, 2012 2:26 pm
Car(s): 1986 Laser 1.6, runaround project
1981 GL Auto 2.0, Barn-Find-Resto, now also a runaround project
1980 3.0S, crash damage resto

Currently full up and no more space but I still want a 2.8...
Location: South Bucks

Re: How do I check 2.8 is factory original

Post by D366Y » Wed Feb 26, 2020 12:23 pm

In your picture Peter am I right in thinking that the sections I've marked in red are the support plates, the green one is the battery tray, is the blue one part of the re-enforcement plates as well or not?
Thanks

User avatar
pbar
Posts: 5971
Joined: Thu Jun 07, 2012 6:29 pm
Car(s): Capri 2.0 Laser, frequent driver.
Location: North-West

Re: How do I check 2.8 is factory original

Post by pbar » Wed Feb 26, 2020 12:26 pm

Peter - can you see the top strut plates on the two pics I posted? Are they standard on the 2.8 then. On the car which Oilburner is looking at, they do not seem to be on the engine bay pic.

User avatar
Peter-S
Donator
Donator
Posts: 6828
Joined: Mon Jul 28, 2008 7:57 am
Car(s): 1985 Capri 2.0
1983 Capri 2.8i
Location: Kent
Contact:

Re: How do I check 2.8 is factory original

Post by Peter-S » Wed Feb 26, 2020 2:13 pm

pbar wrote:
Wed Feb 26, 2020 12:26 pm
Peter - can you see the top strut plates on the two pics I posted? Are they standard on the 2.8 then. On the car which Oilburner is looking at, they do not seem to be on the engine bay pic.
Hi Paul

Yes they would be standard on 6 cylinder cars. Certainly they seem to be missing in the car Oilburner is looking at. Could be something to do with the restoration 11 years ago if they were cut out due to corrosion perhaps but you would expect them to be put back.
ImageBanner by Peter Smith, on Flickr

User avatar
Peter-S
Donator
Donator
Posts: 6828
Joined: Mon Jul 28, 2008 7:57 am
Car(s): 1985 Capri 2.0
1983 Capri 2.8i
Location: Kent
Contact:

Re: How do I check 2.8 is factory original

Post by Peter-S » Wed Feb 26, 2020 2:17 pm

D366Y wrote:
Wed Feb 26, 2020 12:23 pm
In your picture Peter am I right in thinking that the sections I've marked in red are the support plates, the green one is the battery tray, is the blue one part of the re-enforcement plates as well or not?
Thanks
Yes Dan red and blue are standard strengthening plates on 6 cylinder shells. The green battery one obviously depends on which side the battery tray is so 4 pots and 3.0 litre is nearside and 2.8 and, I think, autos on the offside.
There are also a couple of small extra plates at the bottom of the tower - see the right hand edge of the bigger red circle.
ImageBanner by Peter Smith, on Flickr

User avatar
pbar
Posts: 5971
Joined: Thu Jun 07, 2012 6:29 pm
Car(s): Capri 2.0 Laser, frequent driver.
Location: North-West

Re: How do I check 2.8 is factory original

Post by pbar » Wed Feb 26, 2020 2:29 pm

Peter-S wrote:
Wed Feb 26, 2020 2:13 pm

Hi Paul

Yes they would be standard on 6 cylinder cars. Certainly they seem to be missing in the car Oilburner is looking at. Could be something to do with the restoration 11 years ago if they were cut out due to corrosion perhaps but you would expect them to be put back.
Thank you Peter.

Oilburner
Posts: 7
Joined: Tue Feb 25, 2020 4:53 pm
Car(s): Looking to buy a 2.8i

Re: How do I check 2.8 is factory original

Post by Oilburner » Wed Feb 26, 2020 2:38 pm

Thanks all
I think this give me enough to check the body
Any info on checking the numbers please
Cheers

User avatar
pbar
Posts: 5971
Joined: Thu Jun 07, 2012 6:29 pm
Car(s): Capri 2.0 Laser, frequent driver.
Location: North-West

Re: How do I check 2.8 is factory original

Post by pbar » Wed Feb 26, 2020 2:56 pm

This may help you out -

viewtopic.php?t=47845

Arnoldhar
Posts: 123
Joined: Sun Jun 15, 2014 4:35 pm
Car(s): 2.0l mk3

Re: How do I check 2.8 is factory original

Post by Arnoldhar » Wed Feb 26, 2020 4:13 pm

I would say this car has a little history, according to the DVLA MOT site its been of the road or not MOTed between 2009 and 2019, the inner wings are 100% wrong for a 2.8, the nearside looks from the photo to rise towards the strut top so the strengthening plate may have been filled over, the drivers side looks flat, could be the photos, maybe its had new inner wing on the drivers side and they fitted a 4 cylinder one?. The strengthening plate normally rises at 45 degrees under the wing lip. Personally I would be asking a lot of questions if I really wanted the car

User avatar
Andrew 2.8i
Donator
Donator
Posts: 13067
Joined: Sat Jan 25, 2014 7:38 pm
Car(s): '83 2.8 Injection (sunny days only)
'04 Toyota MR2 (owned from new)
Location: Ceredigion
Contact:

Re: How do I check 2.8 is factory original

Post by Andrew 2.8i » Wed Feb 26, 2020 4:45 pm

Hi,
This is a good site for decoding the VIN plate:
http://capri.fordever.cz/Tipy/tipy_cz.htm#v%C3%BDroba

Andrew.

Bug
Posts: 3128
Joined: Sun Jan 04, 2009 3:52 pm
Car(s): Some

Re: How do I check 2.8 is factory original

Post by Bug » Wed Feb 26, 2020 6:12 pm

Obviously new wings as no aerial?
