P21 radio wiring

Postby Rosco59 » Thu Oct 04, 2018 5:26 pm

Hi does anyone know how to wire a p21 radio there’s spade connections on the back but don’t know what is live or ground. Thanks

User avatar
Jasonmarie
Donator
Donator
Posts: 1914
Joined: Thu Aug 13, 2015 12:30 am
Car(s): Ford Capri 2.0 Laser Mercury Grey 1987 hobby
Mercedes Vito Traveline 2.2 Big Bus Daily Driver
Location: Kent

Re: P21 radio wiring

Postby Jasonmarie » Thu Oct 04, 2018 6:17 pm

The top right will be speakers and then one live at the bottom with the right hand side being of key ignition live but please disconnect the battery and fit a inline fuse as these radios are getting very old now . Now the earth should be a big spade connection on the middle right or you can use the screw connection post in the middle . But I would not use this as the bracket on the back fits threw this .

A picture would help me so I know Iam dead right .

Update as I was off with a few things here’s a picture . You don’t have that white lead as that’s for a iPod .

Ford Capri 2.0 Laser 1987 Mercury Grey ....... :beer:

User avatar
D366Y
Donator
Donator
Posts: 887
Joined: Mon Sep 03, 2012 2:26 pm
Car(s): 1986 Laser 1.6, runaround project
1981 GL Auto 2.0, Barn-Find-Resto
On the hunt for some capri shaped V6 power....
Location: South Bucks

Re: P21 radio wiring

Postby D366Y » Fri Oct 05, 2018 9:42 am

Mine has an inline fuse from the ignition with a glass fuse inside a small plastic case, not sure if it was standard fitment or not, but easy enough to do if not :)

User avatar
Jasonmarie
Donator
Donator
Posts: 1914
Joined: Thu Aug 13, 2015 12:30 am
Car(s): Ford Capri 2.0 Laser Mercury Grey 1987 hobby
Mercedes Vito Traveline 2.2 Big Bus Daily Driver
Location: Kent

Re: P21 radio wiring

Postby Jasonmarie » Fri Oct 05, 2018 10:14 am

D366Y wrote:Mine has an inline fuse from the ignition with a glass fuse inside a small plastic case, not sure if it was standard fitment or not, but easy enough to do if not :)


It was not a standard thing back in the day but well worth doing as these radio cassette really get Hot even with just a few mins running that’s why we all should not cover the air vents on top when working .
Ford Capri 2.0 Laser 1987 Mercury Grey ....... :beer:

Rosco59
Posts: 117
Joined: Wed Sep 02, 2015 7:57 am
Car(s): Ford Capri 2.0s Restoration project

Re: P21 radio wiring

Postby Rosco59 » Fri Oct 05, 2018 6:55 pm

Hi thanks for the help. https://flic.kr/p/MZ95UD
Hopefully the link works mines is slightly different.

User avatar
Jasonmarie
Donator
Donator
Posts: 1914
Joined: Thu Aug 13, 2015 12:30 am
Car(s): Ford Capri 2.0 Laser Mercury Grey 1987 hobby
Mercedes Vito Traveline 2.2 Big Bus Daily Driver
Location: Kent

Re: P21 radio wiring

Postby Jasonmarie » Fri Oct 05, 2018 8:02 pm

First the fuse in the radio is missing it’s bkavk holder ? And if hits any other metal could blow also the wires look like they have a iPod lead ?
I recommend to bench test before fitting .
Ford Capri 2.0 Laser 1987 Mercury Grey ....... :beer:

Rosco59
Posts: 117
Joined: Wed Sep 02, 2015 7:57 am
Car(s): Ford Capri 2.0s Restoration project

Re: P21 radio wiring

Postby Rosco59 » Fri Oct 05, 2018 8:31 pm

Ok thanks for the reply I’ve no idea if it’s got a connection for a iPod. Ive took a better picture this time. How do you bench test it.
https://flic.kr/p/2amJqNT

User avatar
Jasonmarie
Donator
Donator
Posts: 1914
Joined: Thu Aug 13, 2015 12:30 am
Car(s): Ford Capri 2.0 Laser Mercury Grey 1987 hobby
Mercedes Vito Traveline 2.2 Big Bus Daily Driver
Location: Kent

Re: P21 radio wiring

Postby Jasonmarie » Sat Oct 06, 2018 12:52 pm

All the cables are not there a lot better picture , can I see the front .
Yes bench test use a old speaker and get a 9v battery and use that as the live and earth out on some work top . Just so you know where the leads go . I wonder if this is a 90s radio that had a electrical Ariel. .?
Ford Capri 2.0 Laser 1987 Mercury Grey ....... :beer:

Rosco59
Posts: 117
Joined: Wed Sep 02, 2015 7:57 am
Car(s): Ford Capri 2.0s Restoration project

Re: P21 radio wiring

Postby Rosco59 » Sat Oct 06, 2018 5:53 pm

Thanks I appreciate your help. Here’s a picture of the front. https://flic.kr/p/2bLNXne

User avatar
Jasonmarie
Donator
Donator
Posts: 1914
Joined: Thu Aug 13, 2015 12:30 am
Car(s): Ford Capri 2.0 Laser Mercury Grey 1987 hobby
Mercedes Vito Traveline 2.2 Big Bus Daily Driver
Location: Kent

Re: P21 radio wiring

Postby Jasonmarie » Sat Oct 06, 2018 6:44 pm

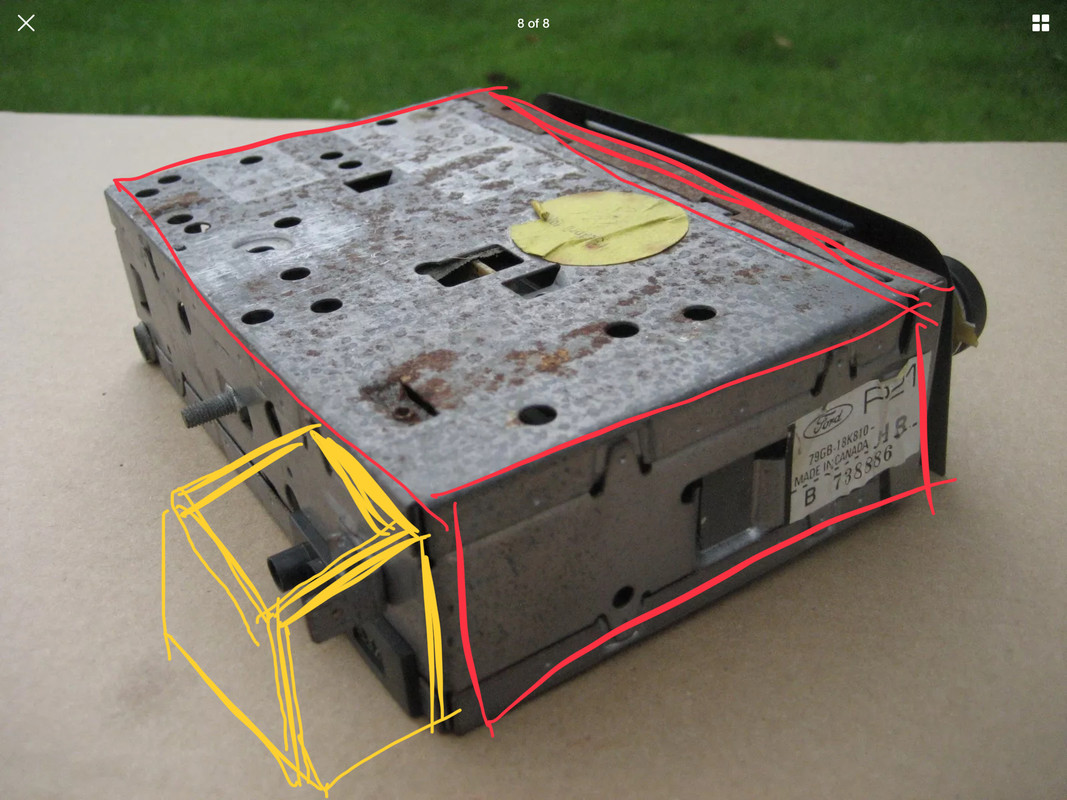

So your radio is from a later Ford as the back will not fit in to the very small gab in the Capri ( I am guessing ) also you will need the face plate that rounded at the corners . I have a picture of a 80s P21 Radio that young Dan has fitted to his and you can see that the yellow lines is the radio you have and the red is what size radio will fit in the Capri . Also the fuse must have a cover what will cost more then the radio to get . I know Martin has a few Radios as he may be able to help and he will not ask a mad price like on eBay . But that’s why the wiring is different .

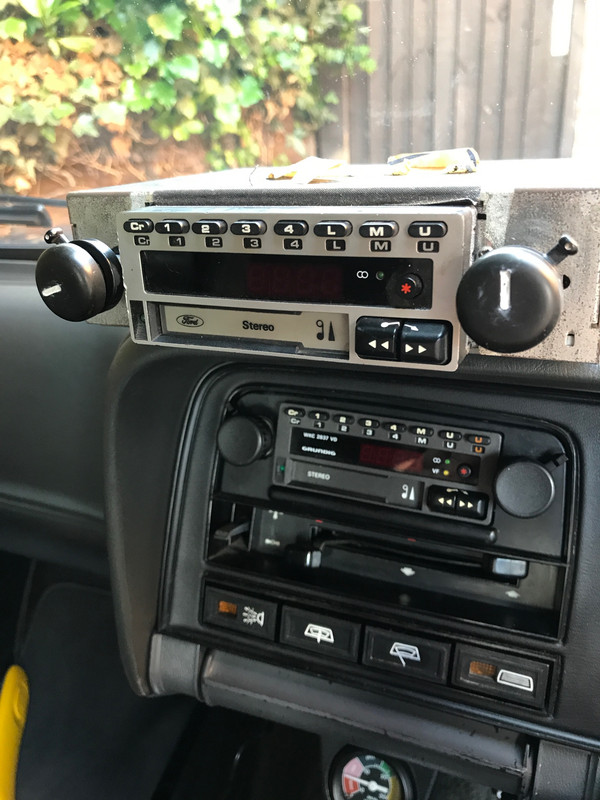

The last picture is my Capri with the radio cassette fitted but you can see the plastic faceplate part you will need as at the moment you have a square faceplate .

Hope this helps .

Jason

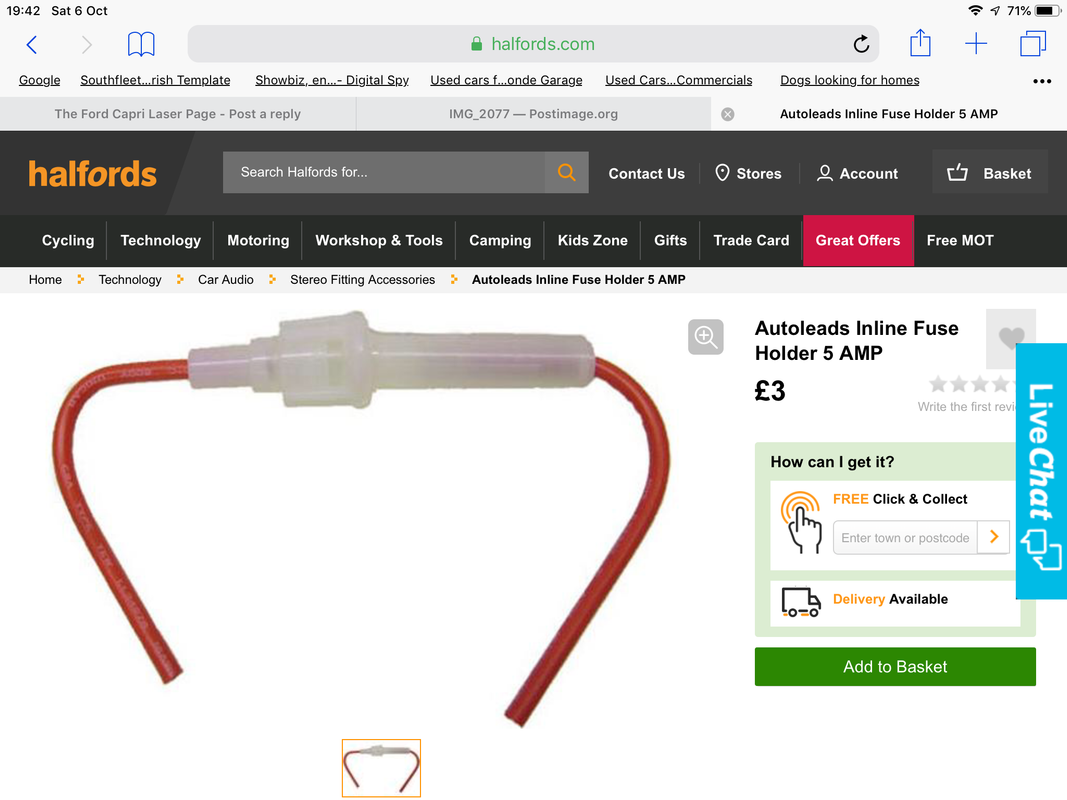

When sorted this is the in line fuse you need .
Ford Capri 2.0 Laser 1987 Mercury Grey ....... :beer:

Rosco59
Posts: 117
Joined: Wed Sep 02, 2015 7:57 am
Car(s): Ford Capri 2.0s Restoration project

Re: P21 radio wiring

Postby Rosco59 » Fri Oct 19, 2018 5:51 pm

Hi thanks for your help I got the radio working but would never have got it working if you never suggested connecting a speaker to it. As I thought the red light would come on the Tunner which I didn’t but got static through the speaker. Now looking for a p42 as there’s not much on mw or lw. I’ll give Martin a shout.

User avatar
Jasonmarie
Donator
Donator
Posts: 1914
Joined: Thu Aug 13, 2015 12:30 am
Car(s): Ford Capri 2.0 Laser Mercury Grey 1987 hobby
Mercedes Vito Traveline 2.2 Big Bus Daily Driver
Location: Kent

Re: P21 radio wiring

Postby Jasonmarie » Fri Oct 19, 2018 6:32 pm

That’s great yes i am sure he had two with fm radio , I found a box in the loft today with the radio cassette in and need to sort out but loads of work on the bench that needs sorting before xmas . Also with the fm radio you can get a little transmitter that goes in to the lighter and you can stream music threw the system .
